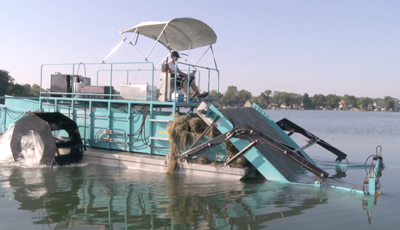

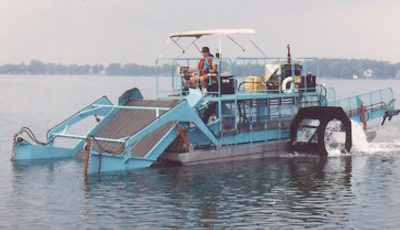

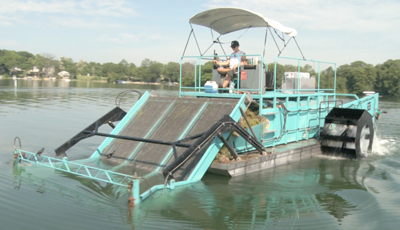

The flagship of Inland Lake Harvesters' fleet, the ILH10-1000 delivers the power and capacity to remove the toughest infestations of aquatic weeds from your large lakes and waterways. With a mighty 1000 cu ft of payload capacity and a 10'- or optional 12'-wide cut, the ILH10-1000 is your strongest partner in waterway management.
The ILH10-1000 is powered by a water-cooled diesel engine or optional air cooled diesel engine and both feature high temp and low oil shut down for engine protection. The front conveyor is equipped with a shock absorbing system to limit damage in the event of striking underwater obstacles. The ILH10-1000 is propelled by side-mounted paddle wheels that are coupled to direct-drive Hydraulic motors. The motors are low speed, high torque, and wear-compensating to increase motor life. The ILH10-1000 is built to last and comes standard with a painted steel hull or optional 304 stainless steel hull. The ILH10-1000 features stainless steel belting on conveyor #1 and heavy-duty galvanized belting on conveyors #2 and #3. The remaining surfaces of the machine are finished with a heavy marine-grade topcoat. The ILH10-1000 features a full length tower for ease of maintenance and increased safety.
12' cutting width, shore conveyor, trailer conveyor, and transport barge.
Environmentally friendly hydraulic fluid/oil is available as an option to help keep your lake and waterways safe.
ILH5x4-100 "Mini"![]() |
ILH6-300![]() |
ILH7-450![]() |
ILH9-650![]() |
ILH10-1000![]() |
|
Cutting Width × Depth |
5' × 4' | 6' × 6' | 7' × 6' | 9' × 6' | 10' × 6' (optional 12' × 6') |
Load Capacity | 100 cu.ft. (1,500 lbs.) |
350 cu.ft. (4,000-4,400 lbs.) |
450 cu.ft. (8,000 lbs.) |
650 cu.ft. (10,000 lbs.) |
1,000 cu.ft. (15,000 lbs.) |
Weight | 3,500 lbs. | 8,200 lbs. | 12,200 lbs. | 14,000 lbs. | 17,900 lbs. |
Shipping Dimensions | 8'W × 9'H × 24'L | 8'6"W × 9'8.5"H × 36'L | 10'4"W × 10'H × 40'L | 10'4"W × 10'H × 42'L | 11'4"W × 10'8"H × 45'L |
